YK series oscillating granulator(YK60, YK160, YK160I)

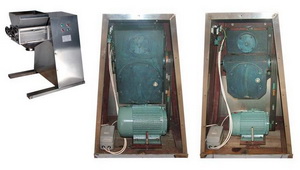

YK-60

Instruction and features：
A. The lumpy materials can be made to granular shape by this machine, after dried it, and can also crush the clotted materials.
B. This machine is best suited in science research units, pharmacy, chemical industry, and food processing industry, etc.
Main technical parameter：
1: Production capacity: 20-30kg/h
2: Speed of hob: 40r/min
3:Diameter of hob: 60mm (rotating angle of hob :> 360°)
4: Motor power: 0.25kw 220v
5: Overall dimension: 530 x400 x550mm
6: Weight: 70kg

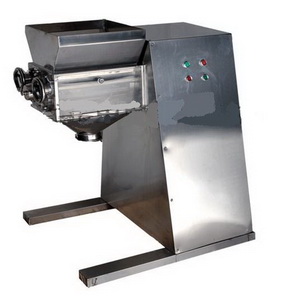

YK-160

Instruction and features：
A. Making average granule is the most feature of machine.
The key parts of making granule in this machine have the excellent advantages as follows:
(a): Design of seven-corner roller
(b ): Materials choice
(c): Good processing craftwork
Hollow triangle reinforcing steel bar over seven –corner roller is made in heterogeneous stainless steel factory. The seven –corner roller swings on the basis of circular movement while making granule .The hollow triangle tendon is lighter than solid tendon, which can induces the resistance of inertia .At the same time the hollow triangle reinforcing steel bar has spring in nature,
Our factory adopts optics orientation model in order to insure as consistent concentricangle as rotate axis in the two ends, therefore producing the average grain.
B. The second feature of machine is strong power.
(1) :The design of worm wheel and rod is very reasonable, which is connecting with the motor and operated with each other, output power for electric motor is very high and also used for a long time.
(2) :Most of user needn’t to change the worm wheel until they has been used it for ten years.
C. The famous product “Ass Glue Enrich Blood Powder from Changsha jiuzhitang, Co. Ltd is processed by our grain machine. The touching surface of substance and outer of machine are sealing by stainless steel and also is consistent with standard of GMP
Main technical parameter ：
1: Production capacity: dried powder (700kg/h) moist powder (330kg/h)
2: Axle` diameter: 160mm
3: Roller length: 360mm
4: Power of motor: 3kw
5: Rotary speed: 1460r/min
6: Net weight: 300kg
7: Overall dimension: 960 x660 x1185mm



YK-160I

Instruction and features：
A. Making average granule is the most feature of machine.
The key parts of making granule in this machine have the excellent advantages as follows:
(a): Design of seven-corner roller
(b ): Materials choice
(c): Good processing craftwork
Hollow triangle reinforcing steel bar over seven –corner roller is made in heterogeneous stainless steel factory. The seven –corner roller swings on the basis of circular movement while making granule .The hollow triangle tendon is lighter than solid tendon, which can induces the resistance of inertia .At the same time the hollow triangle reinforcing steel bar has spring in nature,
Our factory adopts optics orientation model in order to insure as consistent concentric angle as rotate axis in the two ends, therefore producing the average grain.
B. The second feature of machine is strong power.
(1) :The design of worm wheel and rod is very reasonable, which is connecting with the motor and operated with each other, output power for electric motor is very high and also used for a long time.
(2) :Most of user needn’t to change the worm wheel until they has been used it for ten years.
C. The famous product “Ass Glue Enrich Blood Powder from Changsha jiuzhitang, Co. Ltd is processed by our grain machine. The touching surface of substance and outer of machine are sealing by stainless steel and also is consistent with standard of GMP
Main technical parameter
1: Production capacity: dried powder (700kg/h) moist powder (330kg/h)
2: Axle` diameter: 160mm
3: Roller length: 360mm
4: Power of motor: 3kw
5: Rotary speed: 1460r/min
6: Net weight: 300kg
7: Overall dimension: 960 x660 x1185mm
