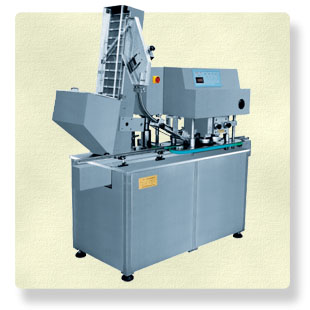

This kind of machine, that our factory imported it from abroad and introduced. then ameliorated the principles of the high speed cap is crewed made by Polar CO.Ltd of the United States of America, is developed to tailor the concrete situation based on our national conditions and medicine enterprises, diverse production requirements, to acquire the strong points and offset its weakness. Our factory is domestically first producer which developed it under combined effort with the China Academy of Medical Science.
A.AII processes are controlled by PLC program easy to operate and
stable in property.
B. Wide application. for round bottles, square bottle or flat ones.
C. Wide modulation at your command, varying to the cover, diameter and depth of the bottle adjust randomly without changing it relative mole and screw bolt head within its adjustable range.
D. Cap-spinning speed, rotation speed, bottle-clamp transit belt &
chain can both be stepless speed regulation. just to adjust to the
optimum point while in use.
E. During cap-spin, the bottle cover will not be found slippery. breakage, malformedness to the bottle, it can be upgraded 4-fold of working efficiency compare with grapple cap screwier.
Specifications and Parameters
Max production capacity(Bottle/min)：60-120
Specification of Bottle(ml)：15-200
Measurement(Length/width/height)(mm)：19-65/23-100/45-210
Voltage/Frequency(V/Hz)：220/50
Power(Kw)：0.85
Measurement(mm)：2230×700×1950
Weight(kg)：440
