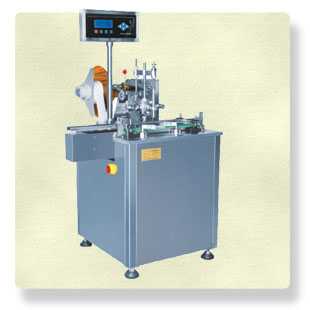

The paper-supplying for bottling goods of tablet and capsule is one of an important work in medicine. In order to stop the damage in the bottle and the collision putting the paper or cotton into the bottle. Automatic instead of the manual. For improving the output. We produced the super speed paper-supplying machine in order to satisfy each customer.
A. AII processes are controlled by PLC program easy to operate and stable in property.
B. There are apparatus that stop the machine when no bottles.
C. There is the operation front-panel of touching type,easy to operate and stable in property.
Specifications and Parameters
Max production capacity (Bottle/min): 60-80
Specification of Bottle (ml): 15-200
Voltage/Frequency (V/Hz): 220/50
Power (Kw): 0.85
Enwrap page of drum (Bore/Diameter/Width)(mm): 75/300-350/60-80
All Measurement (mm): 1040×970×1320
Weight (kg): 230
Production Line
