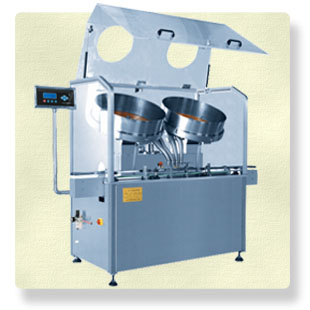

It is suitable for pharmaceutical, food, and chemical industries. It automatically fills bottles with pills or tablet, then counts and covers the bottle. It can be connected with next process. Being beautifully designed and easily regulated, it is an ideal choice for packing and counting equipment.。
A. Electromotor speed is regulated by frequency-transformer accordingly.
B. All the processes are controlled by PLC program, easy to operate and stable in property.
C. It has apparatus that stops the machine when no bottles detected.
D. There is dust-collecting equipment in accordance with GMP standard.
E. Counting plate is specially designed of a swinging structure that gives off little noise and is also easy to regulate.
Main Technical Specifications:
Max production capacity(Bottle/min):80-120
Specification of Bottle(ml):15-150
Voltage/Frequency(V/Hz):220/50
Power(Kw):1.5
All Measurement(mm):1850×800×1600
Compressed Air(Mpa):0.2-0.3
Weight(kg):450
